SGSM 40
This Swinging Diamond Wire Cutting Equipment have a loop type diamond wire cutting at same time swinging.and the swing degree can be set in system.
The highlight of this Swinging Diamond Wire Cutting Equipment is the addition of the cutting wire’s oscillation function and multi-wire cutting. By addressing the challenges encountered in cutting superhard materials, we have enhanced the swinging amplitude of the guide wheels in the circular wire cutting equipment. This enables faster cutting of materials such as sapphire and quartz, resulting in smoother surfaces.
| No. | Name | Specification |
| 1 | Maximum Workpiece Length (mm) | 400 |
| 2 | Maximum Workpiece Width (mm) | 400 |
| 3 | Maximum Workpiece Height (mm) | 375 |
| 4 | Worktable Y-Axis Travel (mm) | 400 |
| 5 | Worktable Z-Axis Travel (mm) | 400 |
| 6 | Maximum Diamond Wire Speed (m/s) | 38 |
| 7 | Minimum Feed Increment Y-Axis (mm) | 0.01 |
| 8 | Minimum Feed Increment Z-Axis (mm) | 0.01 |
| 9 | Repeat Positioning Accuracy Y-Axis (mm) | 0.03 |
| 10 | Repeat Positioning Accuracy Z-Axis (mm) | 0.03 |
| 11 | Total Power Consumption (kW) | 4 |
| 12 | Power Supply | 220V 50Hz |
| 13 | Machine Size(mm) | 1200*950*2000 |
| 14 | Machine Weight(kg) | 600 |
| 15 | Swing Degree | set on request |
Model SGSM 40 Multi-wire Cutting Equipment has a closed-loop diamond wire that can move in a single direction without the need for reversing. The circular diamond wire enables high linear speeds. As a result, it allows for fast cutting speeds and maintaining superior cutting surface quality.
The cutting tool used by the equipment is also the latest ring-shaped diamond wire.
Diamond Wire Loop has 3 different types: Full coating ,Segment Coating and Thread Coating. Each has it’s advanagtes.
Click here to learn more about Cutting wire loops.
Multi-wire Cutting Equipment

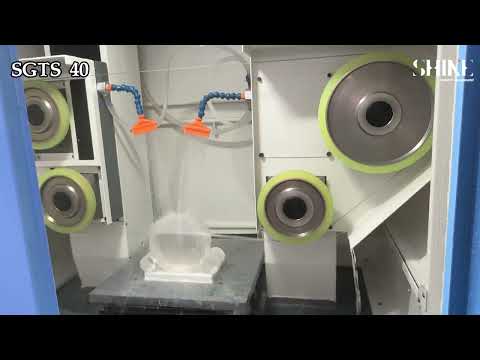

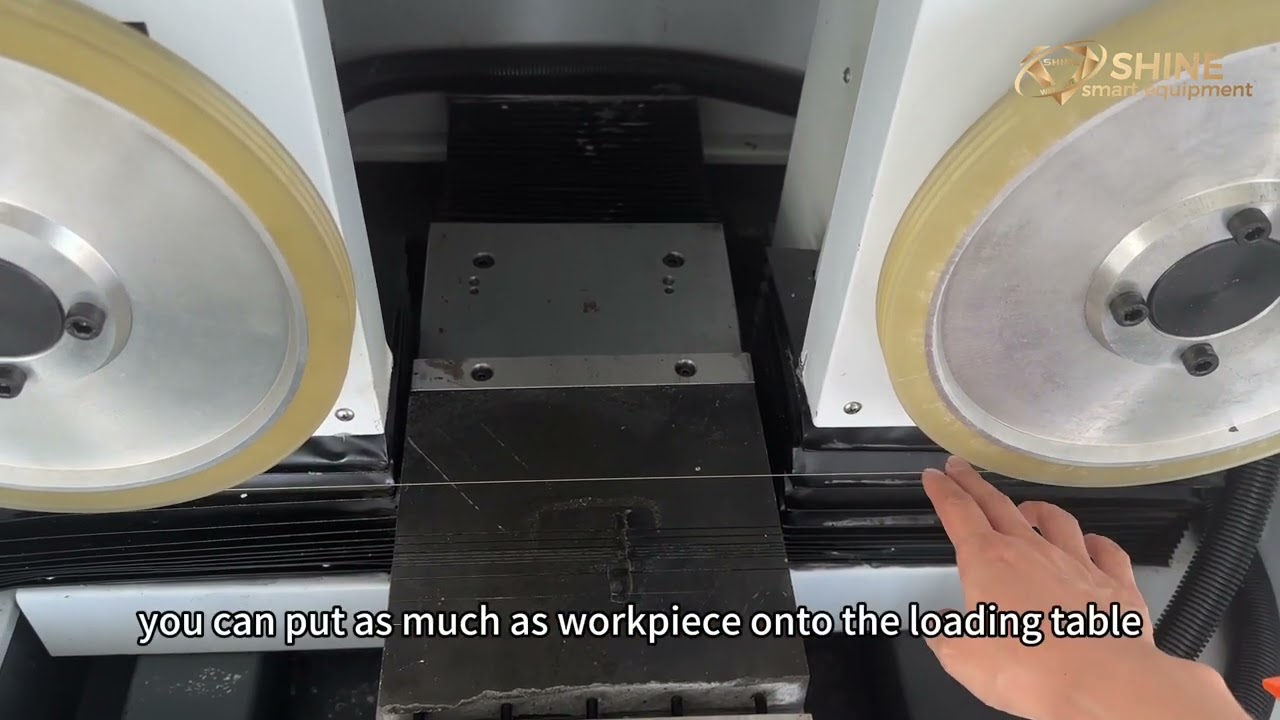

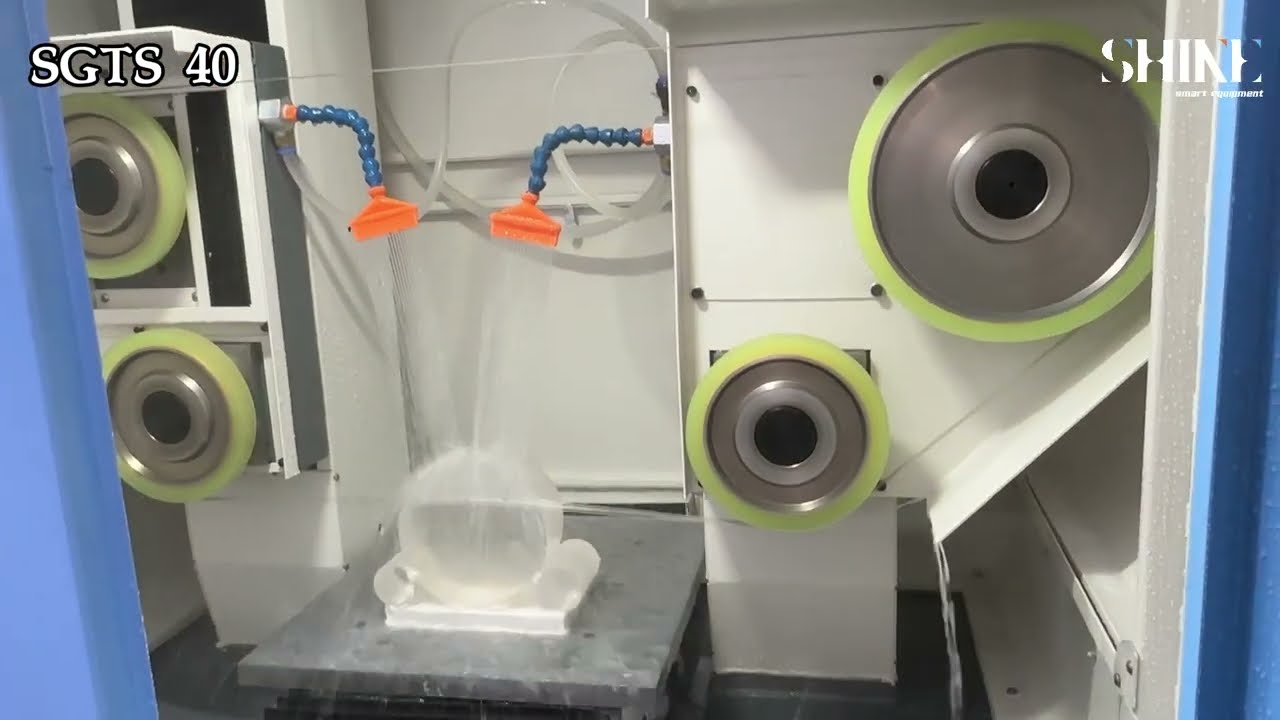

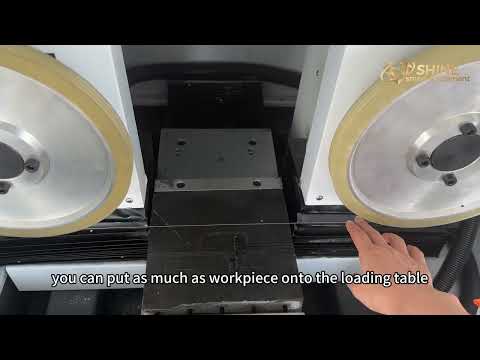

Customer On-site Cutting Effect Showcase
Click To Watch More Videos Showing Our Cutting Machine In Action.
The Difference of
Inner Diameter Saw And Endless Wire Saw
| Inner Diameter Saw: | Endless Wire Saw: |

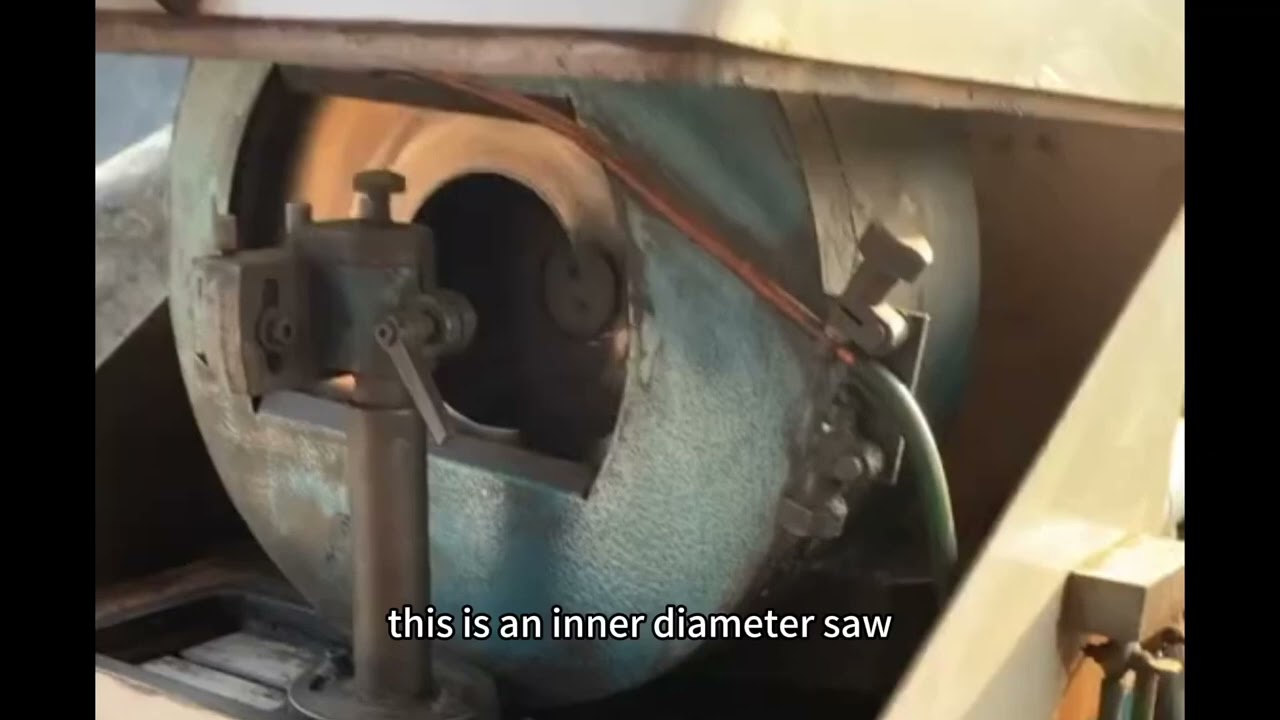

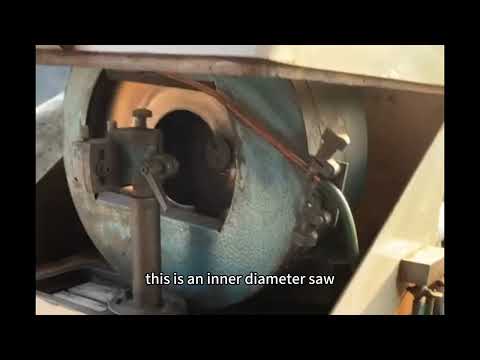

| An inner diameter saw, also known as an ID saw, is a traditional cutting machine used for various materials, including optical glass. This type of saw features a circular blade with a fixed diameter. The material to be cut is positioned around the blade, and the blade rotates to cut through the material. | An endless wire saw, on the other hand, is a cutting machine that uses a continuous loop of cutting wire, often coated with abrasive materials like diamond particles. This wire runs on a set of pulleys and moves through the material to make cuts. |
 |  |
| key characteristics of inner diameter saws: | key characteristics of endless wire saws: |
1, Limited Cutting Depth: Inner diameter saws are limited by the size of the circular blade. The cutting depth is determined by the radius of the blade, which can restrict the thickness of the workpiece that can be cut. 2, Material Waste: The circular blade of an inner diameter saw results in a significant amount of material waste in the form of the cut width and the circular core. This is particularly pronounced when cutting out shapes or patterns from a larger sheet. 3, Cutting Efficiency: While inner diameter saws are effective for certain applications, their cutting efficiency can be lower when compared to more advanced cutting technologies. | 1, Continuous Cutting: The continuous loop of the cutting wire allows for non-stop cutting of workpieces, regardless of their size or shape. This eliminates the limitations of the blade’s diameter and enables the cutting of large and thick materials. 2, Minimal Material Waste: Endless wire saws produce minimal material waste due to the thinness of the cutting wire. This is especially beneficial when cutting valuable materials like optical glass, where reducing waste is crucial. 3, Versatility: Endless wire saws are versatile and adaptable to various materials and shapes. They are particularly effective for cutting intricate patterns, complex geometries, and irregular shapes. 4, Efficiency: Endless wire saws often offer higher cutting efficiency due to their continuous cutting action and reduced material waste. |
Optoelectronics
Swinging Diamond Wire Cutting Equipment
The cutter is employed to shape synthetic sapphire and other crystals used in LED and laser technologies.
Scientific Research Institute
Swinging Diamond Wire Cutting Equipment
The cutter is employed to shape synthetic sapphire and other crystals used in LED and laser technologies.
Jewelry and Luxury Goods
Swinging Diamond Wire Cutting Equipment
Crafting of large gemstones and sapphire glass for watches and high-end electronics displays.
Ceramic industry
Swinging Diamond Wire Cutting Equipment
This machine model can cut industrial ceramic such as Alumina (Aluminum Oxide), Silicon Carbide, Zirconia, Cordierite, Titanate…
Semiconductor Industry
Swinging Diamond Wire Cutting Equipment
This machine is used for slicing quartz and other crystal substrates, which are foundational for semiconductor wafers and chips.
Fast Cutting Speed
Ease of Operation
Superior Surface Quality
Less Edge Collapse
Eco-friendly
The combination of a precision diamond wire and an environmentally conscious water cooling system exemplifies the equipment's commitment to minimizing environmental impact during the cutting process.
What is the maximum thickness the machine can handle for cutting?
What is the difference between this wire saw and ID SAW?
Their cutting tools differ; one uses a diamond wire and the other a blade, making one a flexible cutting method and the other a rigid cutting approach. Furthermore, inner-circle slicers limit the workpiece size to be smaller than the blade’s inner diameter, whereas SHINE OptiGantry Wire Saw does not have this restriction.
